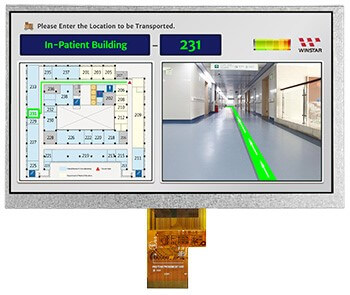

Winstar 7” LVDS TFT-LCD display
Winstar’s latest 7” LVDS TFT-LCD release has 1024 x 600 resolution and uses the EK79001HE and EK73215BCGA driver IC’s supporting an LVDS interface.
This module has a 16:9 aspect ratio and is available with either resistive or projected capacitive touch screens. A high brightness backlight can be specified for sunlight viewing applications. The WF70A7TIAHLNN0 replaces the now EOL WF70A7TIAHLNN0 series and has comparable mechanical and electrical specifications. Operating voltage is from 3.0V to 3.6V, (typical value 3.3V). The WF70A7TIAHLNN0 has an anti-glare surface, standard 12 o clock viewing direction and grey scale inversion of 6 o’clock in 16:9 aspect ratio.
It can operate at temperatures from -20°C to +70°C, with storage temperatures from -30°C to +80°C.
