2.23″ 128×32 Capacitive Touch OLED Display from Winstar
WEP012832A is a capacitive touch OLED Display module suitable for smart home application systems, and medical devices.
This latest 128×32 Winstar OLED module with Capacitive Touch screen, has an SSD1305 driver IC which supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interfaces. The logic supply voltage is 3.3V and the display current is 85mA @3.3VDD (typical value). The capacitive panel uses a FT6336U IC which supports an I2C interface to detect single finger touch. This new Winstar module is available with three interconnect options: hot bar soldering, metal pins or FPC with connector.
Additional features include:
- 128×32 Dot Matrix
- 3V power supply
- 1/32 duty cycle
- Interface: 6800, 8080, SPI, I2C
- Detect Point: 1 Finger

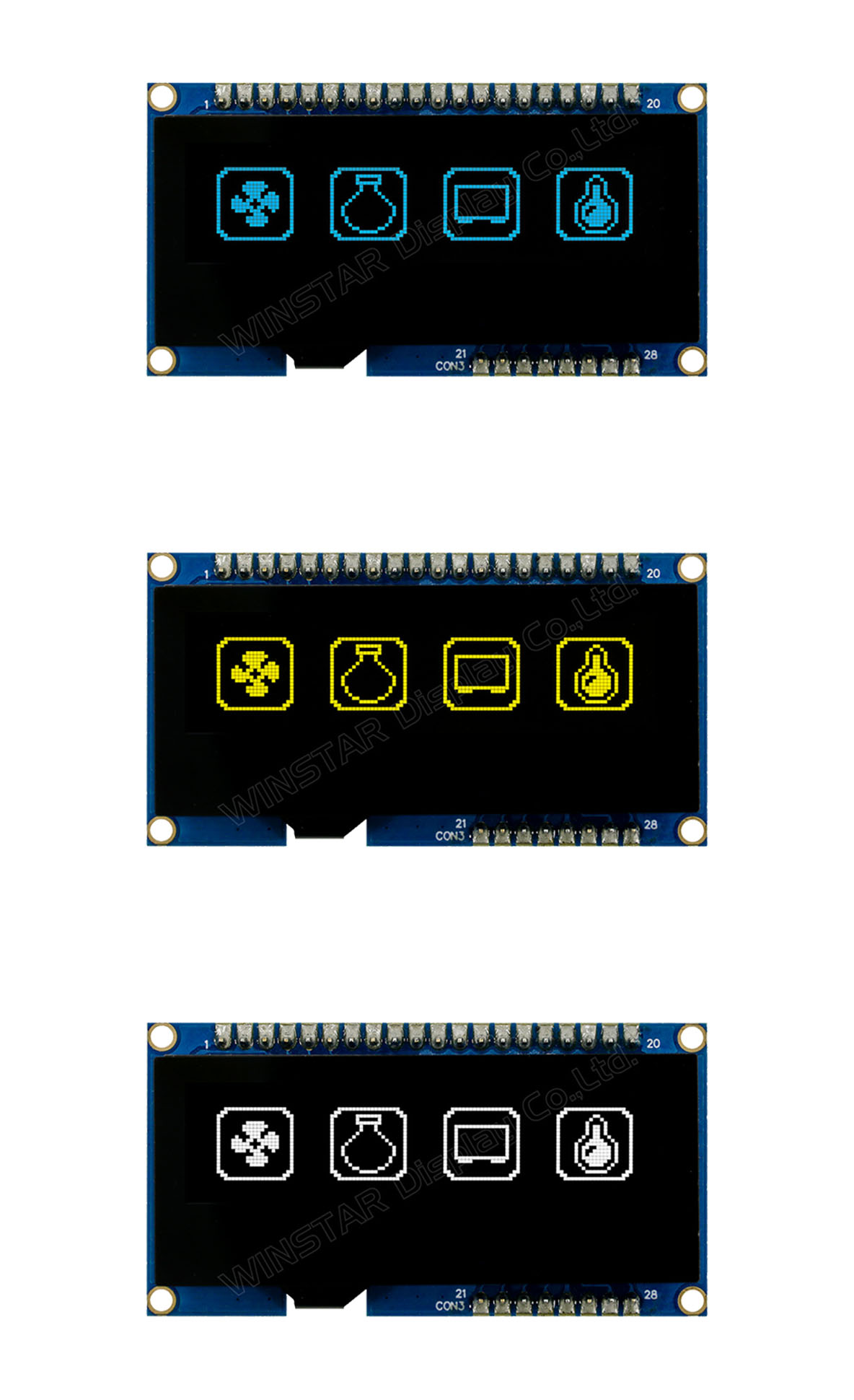

- Display Colour Options: White / Yellow / Blue
- Option to include mini vibration motor and buzzer
- Built-in SSD1305 IC supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface
