Diamond HMI Introduce Small Footprint OLED Displays

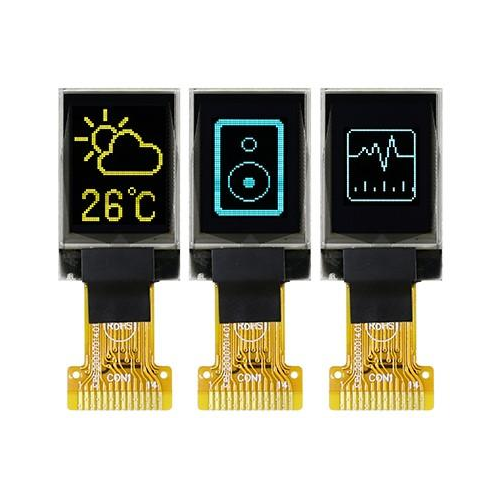

Diamond HMI have introduced the latest Winstar small outline, passive matrix OLED displays.
The range comprises 4 sizes of module, 0.49, 0.66”, 0.71”& 0.84. Each size is available in White or Sky Blue characters.
Application include Wearable devices, medical devices and consumer goods.
All the products in this new range from Winstar Displays range are of ultra-thin, COG format and have no need for backlighting (self-emitting). As well as being lightweight and having very low power consumption, they also demonstrate exceptionally wide viewing angles. Applications include wearable devices, medical devices, consumer goods and handheld instrumentation.
Range summary
The WEO006432A is a 0.49 inch passive matrix OLED display module which is made of 64×32 dots. The module dimension are 14.5x 11.6 x 1.26 mm and the Active Area is 11.18 × 5.58 mm. WEO006432A has a built in SSD1306BZ IC which supports SPI and I2C interface, 3V power supply.
The WEO006448A is 64×48 pixels, diagonal size only 0.66 inch with outline dimension of 18.46 × 18.10 mm and AA size 13.42 × 10.06 mm.It is built with SSD1306BZ controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire serial interface.
The WEO004864A is a small Graphic PMOLED display which is made of 48×64 dots, diagonal size 0.71 inch. WEO004864A has the module dimension of 13.90 × 22.0 mm and Active Area size 10.54×14.70 mm. Utilising a built in SSD1306BZ controller IC; it supports SPI and I2C interface and requires a 3V power supply.
The WEO009616A is a 0.84 inch Graphic passive matrix OLED display module with 96×16 dots. It has the module dimension of 29.1× 9.2 × 1.45 mm and Active Area size 21.104×3.504 mm.WEO009616A has a built in SSD1306BZ IC which supports I2C interface and requires a 3V power supply.
