New 2.4 inch Portrait TFT from Winstar
Diamond HMI have introduced a new small format TFT Module from Winstar with a diagonal size 2.4 inches.
The module has a resolution 240×320 pixel and uses the Himax 8347- I controller IC which supports 4-wire SPI interface and a supply voltage range from 2.4V to 3.3V. The module has an“Antiglare”surface and has 6 o clock viewing direction plus a 12 o clock grey scale inversion direction. Standard contrast ratio is 500:1.

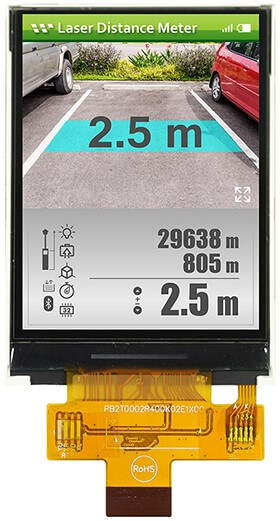

The WF24KTLAJDNN0 is a Portrait mode TFT module having a typical brightness of 500 nits and may be specified with a Resistive Touch Screen. The operating temperature ranges from -20℃ to + 70℃; with storage temperatures from -30℃ to +80℃.

Datasheet for WF24KTLAJDNN0
