NEW Ultra Thin 1.54” Grey Scale 128×64 COG OLED

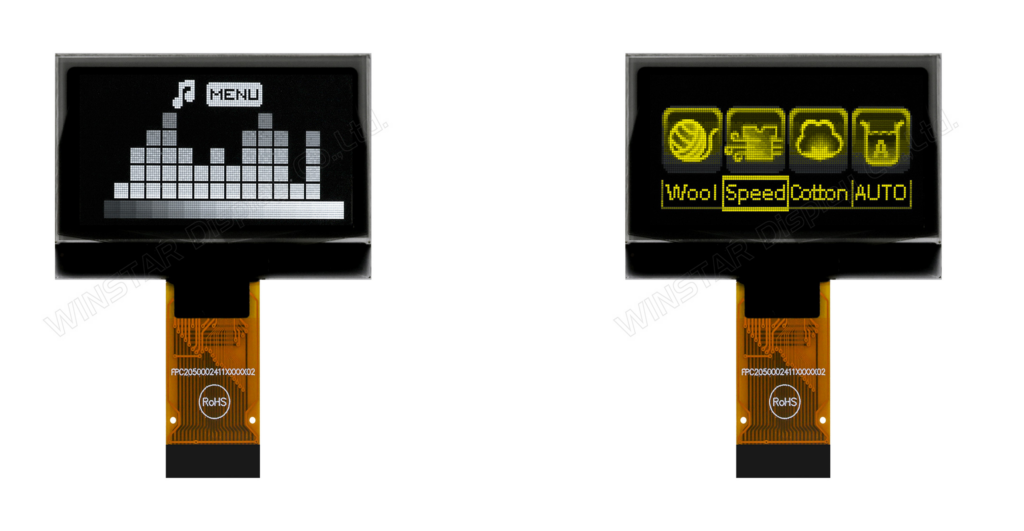

New 1.54 inch, 128×64 COG OLED module from Winstar, ideal for home automation applications, POS systems, Cloud/IoT devices, handheld instruments, energy monitoring systems, communication systems, and medical devices.

WEO012864AA OLED display is based on low power, chip-on-glass technology; with a depth of only 1.41mm. The module is ideal for application where display space is at a premium due to a products overall depth constraints. Operational temperatures range from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.
This graphic display has built-in SSD1327 IC; communication via 6800/8080 parallel, 4-wire SPI and I2C interface, supports 16 (4-bits) greyscale, the power supply voltage for logic 3V.
Model display with 50% checkboard current is 10mA for white OLED, 7mA for yellow OLED, at 12.5V VCC (typical value), driving duty 1/64. For non greyscale function please select model WEO012864A.
Key Features
- Size: 1.54″
- Dot Matrix: 128 x 64
- Built-in controller SSD1327
- Power supply: 3V
- 1/64 duty
- Interface: 6800,8080,SPI,I2C
- Display Colour: White / Yellow
- Support greyscale
- Operating temperatures: -40℃ to +80℃
Contact us for more information
Download Product Specification
WEO012864AA
