The new 2.13-inch Mono TFT with LPRD (Low Power Reflective LCD) from Winstar

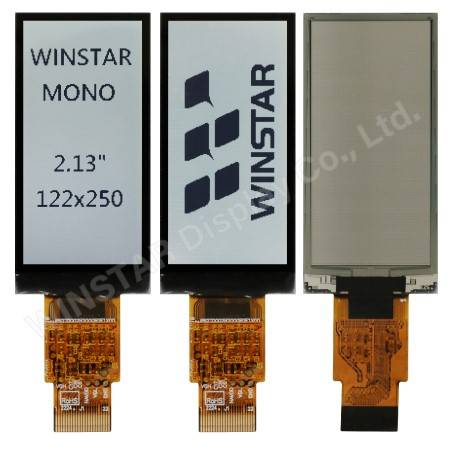

WF22GN5AB2DNN0 is a 2.13-inch Portrait Mode Mono TFT Display with an LPRD (Low Power Reflective LCD) resolution of 122×250 pixels, built-in ST7306 driver IC that supports 8-bit MCU, 4-line SPI/3-line SPI interfaces.
Reflective LCD advantages:
- Sunlight readable
- Outdoor suitable
- Vivid Colour
- High-quality visibility
- Reflective displays
- UV Resistance
- Low power consumption
- Slim and light
- Mono TFT
- Fast refresh rate
- Ideal for dynamic information display
- Remove backlight (blue light) to reduce eye hazards
- View angle of Left:65 / Right:65 / Up:65 / Down:65 degree
- The supply voltage for logic is 2.55 to 3.6V
- Value of 3.3V
- Aspect ratio 18:9
- Anti-glare glass
- Operating at temperatures from -20℃ to +70℃
- Storage temperatures range from -30℃ to +80℃
