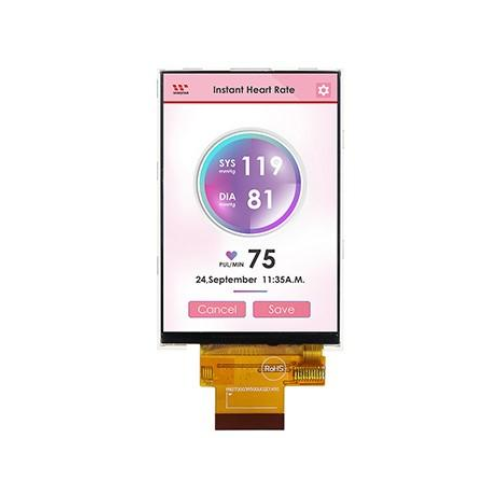

Winstar 3.5″ IPS TFT Module
Designed for handheld instrument applications which require wider viewing angles,the Winstar WF35UTYAIDNN0 is a 3.5 inch IPS TFT Panel with 320×480 resolution.
The WF35UTYAIDNN0 TFT module is built in with the ILI9488 IC which supports an MCU interface and features a panel brightness of 600 nits (typical value).
This 3.5″ TFT LCD module is portrait mode and ustilises IPS (In-Plane Switching) technology which has the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). WF35UTYAIDNN0 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
