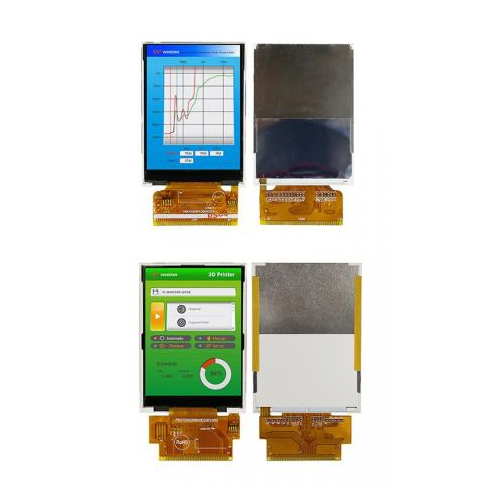

Winstar 2.4″ & 2.8″ TFT LCD Modules
The WF24E & WF28E are small format TFT displays from Winstar. Each module features full colour 240 x 320 RGB TFT LCD modules with diagonal sizes of 2.4 & 2.8 inch respectively.
Both modules have a built in ILI9341V driver IC which supports 8/ 16bit 8080-series Parallel MCU Interface. The WF24H model has module dimension of 42.72 x 60.26 mm and Active area size of 36.72 x 48.96 mm whilst the WF28E models dimensions are 50.0 x 69.2 mm and Active area size of 43.2 x 57.6 mm. Logic supply voltage range from 2.5V to 3.3V. Display brightness is measured at up to 500 cd/m2 making either device ideal for handheld and bench top instruments.
Both display are designed for portrait mode applications however if you would like to use it as landscape mode, please contact with us for technical support.
