Winstar’s latest 7″ 1024×600 TFT display

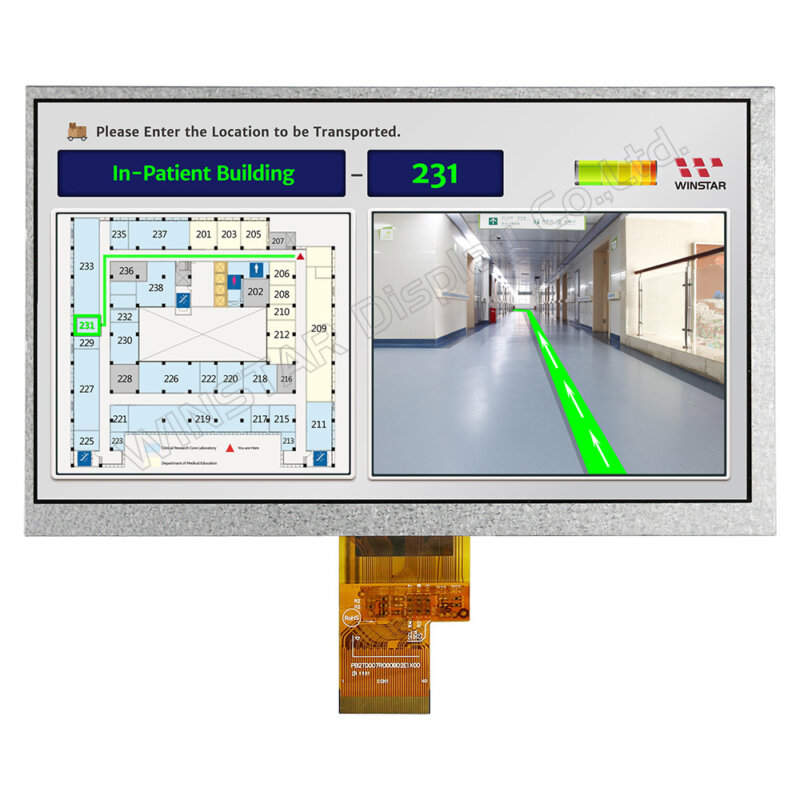

The WF70A7TIAHLNN0 is Winstar’s latest 7″ 1024×600 TFT display. It has an LVDS interface and is available with Resistive Touch Screen (RTP) or Projected Capacitive Touch Screen (CTP).
The colour TFT Display has a built in EK79001HE and EK73215BCGA driver IC. The surface has antiglare coating, perfect for areas lit by sunlight or artificial lighting. A high brightness option is also available for greater screen clarity. Voltage ranges for 3.0V to 3.6V typical value 3.3V. Operating temperatures range between -20 ℃ to +70 ℃ and storage temperatures from -30 ℃ to +80 C.
Additional features include:
- LCD type: TFT, Normally White, Transmissive
- Aspect Ratio: 16:9
- Driver IC: EK79001HE + EK73215BCGA
- Backlight Type: LED, Normally White
- Resistive or Capacitive Touch Panel.
- Interface: LVDS
- Dot Matrix: 1024 x RGBx600(TFT) dots
- Module dimension: 164.8(W) x 99.8(H) x 5.65(D) mm
- Active area: 154.2144 x 85.92 mm
