WF57FTLAFDNN0

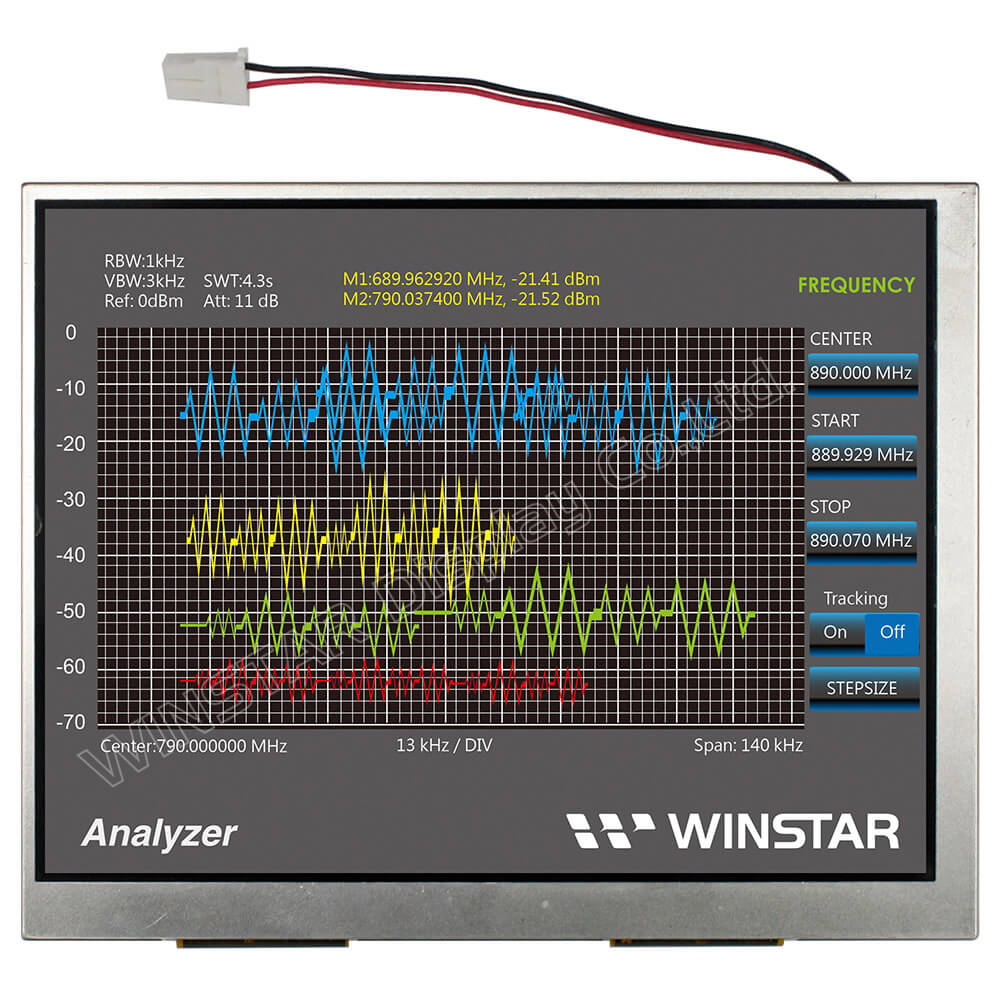

Winstar Display standard TFT module WF57F is featured with VGA 640 x 480 resolution. This display has the outline dimension of 125.0 x 98.8 x 5.95 mm (without FPC) and Active Area size of 115.2 x 86.4 mm. The WF57F display is available with Capacitive Touch Panel and Resistive Touch Panel
options.
WF57F module is RBG interface; 6 o’clock view direction and gray scale inversion direction 12 o'clock and the panel aspect ratio is 4:3. The supply voltage range for LCM (VCC) is from 3.0V to 3.6V and the power consumption is 29.7 mW. This TFT module Brightness is from 400 ~ 500 cd/m2 and it can be operating at temperatures from -20 °C to +70 °C; its storage temperature ranges from -30 °C to +80 °C.
