WEF012864Q
£ - Contact sales office

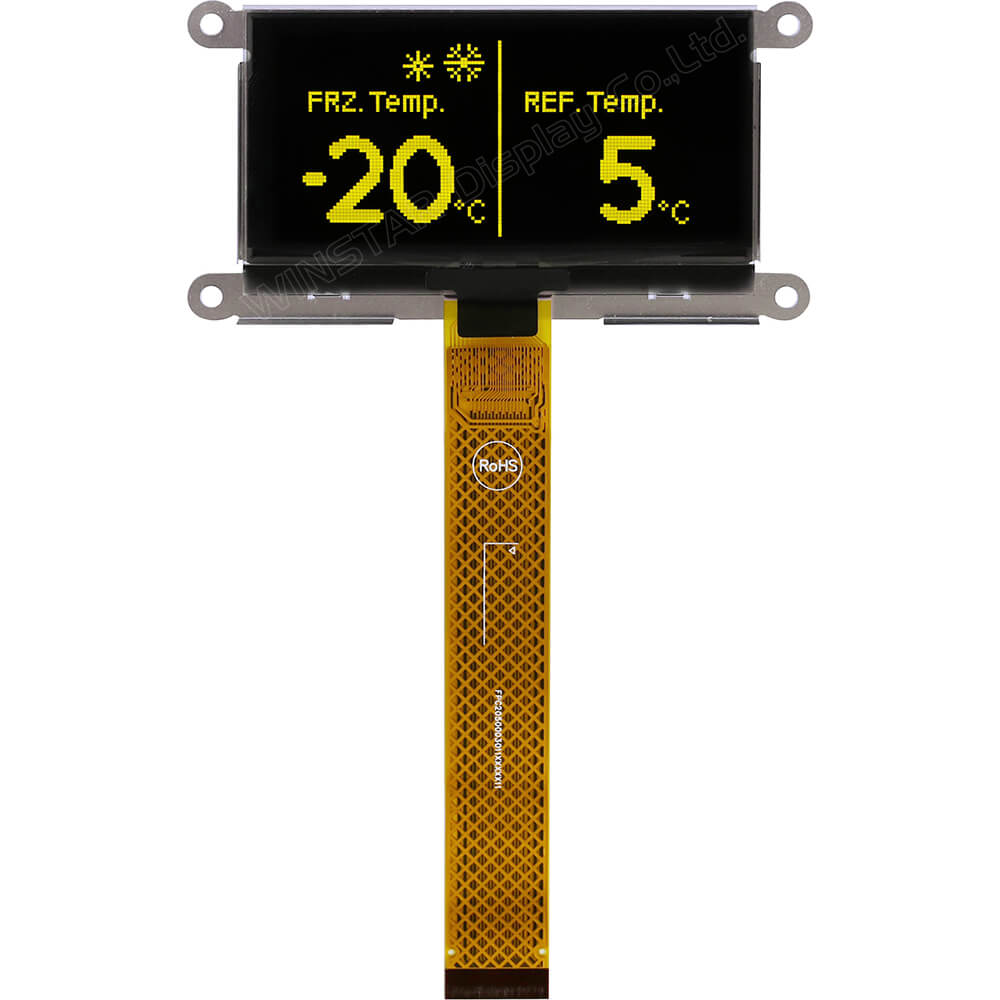

Winstar OLED Display WEF012864Q is made of 128x64 pixels, diagonal size 2.7 inch. This graphic display is built-in SSD1309ZC controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire serial interface. WEF012864Q is having the module dimension of 89.7 x 47.2 mm and AA size of 61.41 x 30.69 mm; it has the same OLED panel as existing WEO012864K with a bezel (frame) on module, it’s FPC pin assignment has been defined as the same as WEX012864L (30 pins). WEF012864Q model is a COG OLED; it can be regards as an alternative of TAB type WEX012864L. The standard emitting colours for this item are available in yellow, white and sky blue.
WEF012864Q is a COG structure OLED display; this OLED module is lightweight, low power and very thin, it is suitable for wall / meter devices, home applications, POS system, Cloud/IoT system, intelligent technology devices, energy systems, communication systems, medical instrument, etc. WEF012864Q OLED module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +80℃.
- Built In Controller:SSD1309ZC
- Display Technology:COG
- Dot Pitch:0.48×0.48
- Dot Size:0.45×0.45
- Manufacturer:Winstar
- Overall Size:89.7×47.2
- Resolution:128×64
- Viewing Area:63.41×32.69
