WEG010016D
£ - Contact sales office

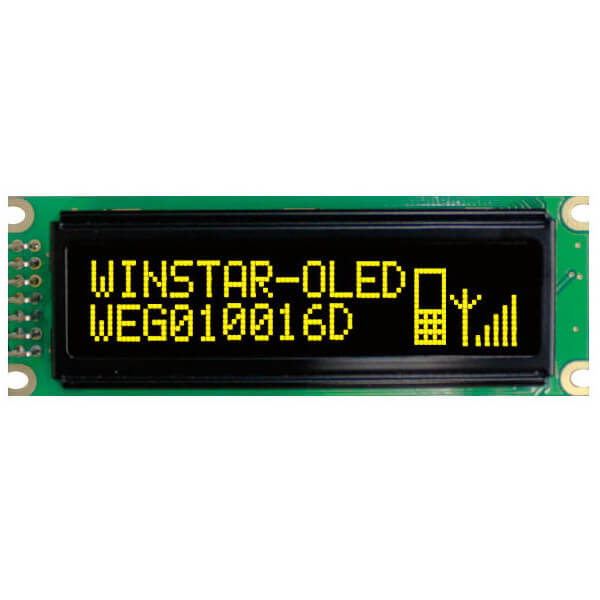

Winstar WEG010016D graphic monochrome OLED display module has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This monochrome OLED display 100x16 pixels display module features a very wide viewing angle up to 175° and is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. The standard colours are yellow and green, but options are available in red, blue, white, and amber. Operating temperature and storage temperature ranges are -40 ℃ ~ 80 ℃”.
- Built In Controller:WS0010
- Display Technology:COB
- Dot Pitch:0.60×0.70
- Dot Size:0.55×0.65
- Manufacturer:Winstar
- Overall Size:85×30
- Resolution:100×16
- Viewing Area:66×16
