WEG010016E
£ - Contact sales office

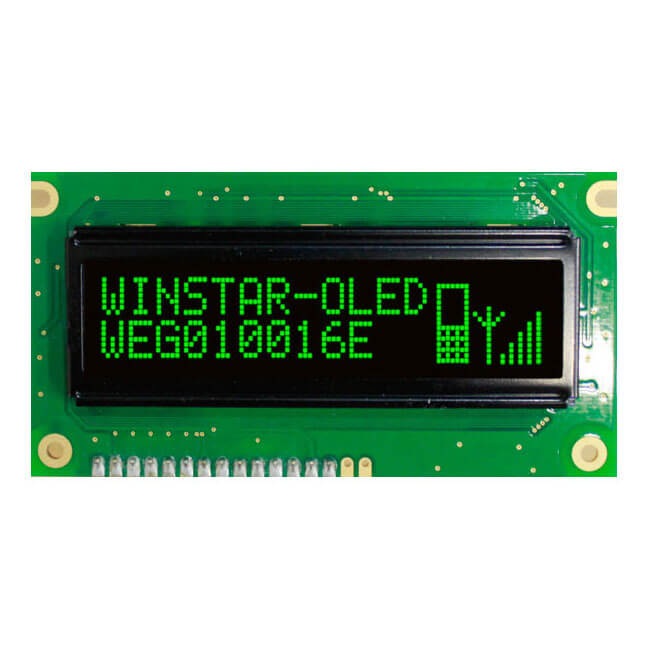

Winstar WEG010016E is 2.4" OLED Display which is made of 100x16 pixels. This display is built-in WS0010 controller is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. This 2.4 inch OLED display has different interface available, default 6800 or option 8080. The operating temperature and storage temperature ranges of the WEG010016E are -40 ℃ ~ 80 ℃. The WEG010016E module and WEG010016A, WEG10016C, WEG10016D are all have the same OLED panel size, but using different PCB design. The customers can choose best module for their applications.
- Built In Controller:WS0010
- Display Technology:COB
- Dot Pitch:0.60×0.70
- Dot Size:0.55×0.65
- Manufacturer:Winstar
- Overall Size:84×44
- Resolution:100×16
- Viewing Area:66×16
