WEO012864D
£ - Contact sales office

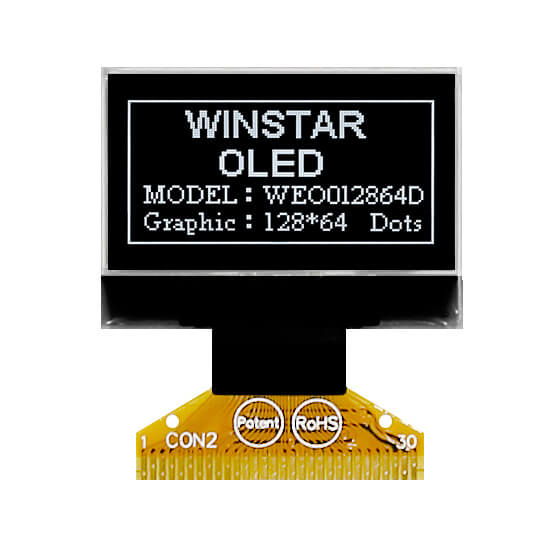

Winstar 0.96" OLED display item no. WEO012864D is made of 128x64 pixels, diagonal is only 0.96 inch. This OLED 0.96" is built-in SSD1306 controller IC, it communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface. This model is also very suitable for wearable device. These OLED COG modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, wearable device, medical device, IoT, mp3, etc. The standard color for this item is yellow, but options are available in green, red, blue, and white.
- Built In Controller:SSD1306BZ
- Display Technology:COG
- Dot Pitch:0.17×0.17
- Dot Size:0.148×0.148
- Manufacturer:Winstar
- Overall Size:26.7×19.26
- Resolution:128×64
- Viewing Area:23.938×12.058
