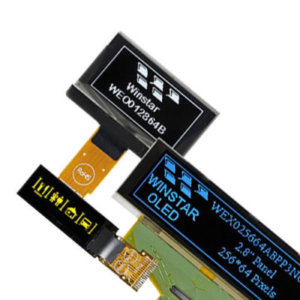

Graphic OLED Modules

Diamond HMI’s graphic OLED displays use three types of construction, COB, COG and TAB passive matrix technology. Available in a wide range of graphic resolutions and on-board controllers, with interfaces include parallel, serial, and I2C and SPI. Drive voltages are 3V or 5V depending on resolution/colour.

The latest small outline OLED display module are perfect for devices that require low consumption display with great viewing angle performance These applications include wearable devices, E-cigarette, white goods, home Automation, AV display systems, personal care appliances, Activity trackers, automobile displays.

Diamond HMI

Filter Options

    • Part No
    • Image
    • PDF
    • Manufacturer
    • Resolution
    • Overall Size
    • Viewing Area
    • Dot Pitch
    • Dot Size
    • Display Technology
    • Built In Controller
    • WEA006448A
    • Winstar
    • 64×48
    • 19.9×23.1
    • 15.42×12.06
    • 0.21×0.21
    • 0.185×0.185
    • COG
    • SSD1306BZ
    • WEA012864D-01
    • Winstar
    • 128×64
    • 38×28.5
    • 23.94×12.06
    • 0.17×0.17
    • 0.148 ×0.148
    • COG
    • SSD1306BZ
    • WEA012864D-03
    • Winstar
    • 128×64
    • 27.3×27.3
    • 23.94×12.06
    • 0.17×0.17
    • 0.148 ×0.148
    • COG
    • SSD1306BZ
    • WEF012864Q
    • Winstar
    • 128×64
    • 89.7×47.2
    • 63.41×32.69
    • 0.48×0.48
    • 0.45×0.45
    • COG
    • SSD1309ZC
    • WEG005016A
    • Winstar
    • 50×16
    • 58×32
    • 38×16
    • 0.60×0.70
    • 0.56×0.66
    • COB
    • WS0010
    • WEG007616A
    • Winstar
    • 76×16
    • 55.7×32
    • 46×14.5
    • 0.55×0.70
    • 0.45×0.60
    • COB
    • WS0010
    • WEG010008A
    • Winstar
    • 100×8
    • 80×36
    • 66×16
    • 0.60×0.80
    • 0.55×0.75
    • COB
    • WS0010
    • WEG010016A
    • Winstar
    • 100×16
    • 80×36
    • 66×16
    • 0.60×0.70
    • 0.55×0.65
    • COB
    • WS0010
    • WEG010016B
    • Winstar
    • 100×16
    • 122×44
    • 99×24
    • 1.12×0.96
    • 0.90×1.12
    • COB
    • WS0010
    • WEG010016C
    • Winstar
    • 100×16
    • 85×36
    • 66×16
    • 0.60×0.70
    • 0.55×0.65
    • COB
    • WS0010
    • WEG010016D
    • Winstar
    • 100×16
    • 85×30
    • 66×16
    • 0.60×0.70
    • 0.55×0.65
    • COB
    • WS0010
    • WEG010016E
    • Winstar
    • 100×16
    • 84×44
    • 66×16
    • 0.60×0.70
    • 0.55×0.65
    • COB
    • WS0010
    • WEG010016F
    • Winstar
    • 100×16
    • 116×37
    • 85×18.6
    • 0.65×0.70
    • 0.60×0.65
    • COB
    • WS0010
    • WEG010016H
    • Winstar
    • 100×16
    • 180×40
    • 149×23
    • 1.22×1.22
    • 1.12×1.12
    • COB
    • WS0010
    • WEG010032A
    • Winstar
    • 100×32
    • 98×60
    • 77×25.2
    • 0.59×0.60
    • 0.54×0.55
    • COG
    • WS0010
    • WEG010032B
    • Winstar
    • 100×32
    • 98×60
    • 77×25.2
    • 0.59×0.60
    • 0.54×0.55
    • COG
    • WS0010
    • WEG020016A
    • Winstar
    • 200×16
    • 182×38.5
    • 154.4×16.5
    • 0.62×0.70
    • 0.57×0.65
    • COB
    • WS0010
    • WEO004864A
    • Winstar
    • 48×64
    • 13.9×22
    • 12.14×16.3
    • 0.22×0.23
    • 0.198×0.208
    • COG
    • SSD1306BZ
    • WEO006432A
    • Winstar
    • 64×32
    • 14.5×11.6
    • 12.58×6.58
    • 0.175×0.175
    • 0.153×0.153
    • COG
    • SSD1306BZ
    • WEO006448A
    • Winstar
    • 64×48
    • 18.46×18.10
    • 15.42×12.06
    • 0.21×0.21
    • 0.185×0.185
    • COG
    • SSD1306BZ
    • WEO009616A
    • Winstar
    • 96×16
    • 29.1×9.2
    • 23.104×5.504
    • 0.22×0.22
    • 0.198×0.198
    • COG
    • SSD1306BZ
    • WEO009664A
    • Winstar
    • 96×64
    • 24.9×22.95
    • 21.953×15.424
    • 0.208×0.21
    • 0.186×0.188
    • COG
    • SSD1305Z
    • WEO009664B-ZIF
    • Winstar
    • 96×64
    • 29×22.5
    • 24.54×17.02
    • 0.235×0.235
    • 0.205×0.205
    • COG
    • SSD1327
    • WEO012832A
    • Winstar
    • 128×32
    • 62×24
    • 57.02×15.1
    • 0.43×0.41
    • 0.408×0.388
    • COG
    • SSD1305Z
    • WEO012832D
    • Winstar
    • 128×32
    • 30×11.5
    • 24.384×7.584
    • 0.175×0.175
    • 0.152×0.152
    • COG
    • SSD1306BZ
    • WEO012832D-1-W
    • Winstar
    • 128×32
    • 30×11.5
    • 24.384×7.584
    • 0.175×0.175
    • 0.152×0.152
    • COG
    • SSD1306BZ
    • WEO012832E
    • Winstar
    • 128×32
    • 33.4×14.5
    • 27.58×7.8
    • 0.20×0.20
    • 0.176×0.176
    • COG
    • SSD1306BZ
    • WEO012832F
    • Winstar
    • 128×32
    • 30×11.5
    • 24.384×7.584
    • 0.175×0.175
    • 0.152×0.152
    • COG
    • SSD1306BZ
    • WEO012832G
    • Winstar
    • 128×32
    • 50.50×15.75
    • 44.22×12.54
    • 0.33×0.33
    • 0.308×0.308
    • COG
    • SSD1307ZD
    • WEO012864A
    • Winstar
    • 128×64
    • 42.04×27.22
    • 37.05×19.52
    • 0.274×0.274
    • 0.249×0.249
    • COG
    • SSD1309ZC
    • WEO012864B
    • Winstar
    • 128×64
    • 45.24×29.14
    • 37.056×19.52
    • 0.274×0.274
    • 0.258×0.258
    • COG
    • SSD1305Z
    • WEO012864C
    • Winstar
    • 128×64
    • 26.7×19.26
    • 23.34×11.46
    • 0.148×0.148
    • 0.170×0.170
    • COG
    • SH1106G
    • WEO012864D
    • Winstar
    • 128×64
    • 26.7×19.26
    • 23.938×12.058
    • 0.17×0.17
    • 0.148×0.148
    • COG
    • SSD1306BZ
    • WEO012864D-1
    • Winstar
    • 128×64
    • 26.7×19.26
    • 23.938×12.058
    • 0.17×0.17
    • 0.148×0.148
    • COG
    • SSD1306BZ
    • WEO012864F
    • Winstar
    • 128×64
    • 41.8×27.9
    • 38.45×20.21
    • 0.285×0.285
    • 0.255×0.255
    • COG
    • SSD1325Z2
    • WEO012864G
    • Winstar
    • 128×64
    • 60.5×37
    • 57.01×28.91
    • 0.43×0.43
    • 0.40×0.40
    • COG
    • SSD1309Z
    • WEO012864H
    • Winstar
    • 128×64
    • 60.5×37
    • 57.01×28.91
    • 0.43×0.43
    • 0.40×0.40
    • COG
    • SSD1309Z
    • WEO012864J
    • Winstar
    • 128×64
    • 75×52.7
    • 57.01×29.49
    • 0.43×0.43
    • 0.40×0.40
    • COG
    • SSD1309Z
    • WEO012864K
    • Winstar
    • 128×64
    • 73×41.86
    • 63.41×32.69
    • 0.48×0.48
    • 0.45×0.45
    • COG
    • SSD1309ZC
    • WEO012864L
    • Winstar
    • 128×64
    • 34.5×23
    • 31.42×16.3
    • 0.23×0.2222
    • 0.205×0.197
    • COG
    • SH1106G
    • WEO012864M
    • Winstar
    • 128×64
    • 26.7×19.26
    • 23.744×13.204
    • 0.17×0.17
    • 0.148×0.148
    • COG
    • SSD1306BZ
    • WEO012864Q
    • Winstar
    • 128×64
    • 73×41.86
    • 63.41×32.69
    • 0.48×0.48
    • 0.45×0.45
    • COG
    • SSD1309ZC
    • WEO128128A
    • Winstar
    • 128×128
    • 33.8×36.5
    • 28.86×28.86
    • 0.21×0.21
    • 0.185×0.185
    • COG
    • SSD1327ZB
    • WEO128128B
    • Winstar
    • 128×128
    • 36.98×41.23
    • 32×32
    • 0.235×0.235
    • 0.21×0.21
    • COG
    • SSD1327ZB
    • WEP012832A
    • Winstar
    • 128×32
    • 66.5×35
    • 59×17.1
    • 0.43×0.41
    • 0.408×0.388
    • COG
    • SSD1305Z
    • WEX025664A
    • Winstar
    • 256×64
    • 84×25.8
    • 71.104×19.264
    • 0.27×0.27
    • 0.248×0.248
    • TAB
    • SSD1322UR1
    • WEX025664B
    • Winstar
    • 256×64
    • 88×27.8
    • 78.78×21.18
    • 0.30×0.30
    • 0.278×0.278
    • TAB
    • SSD1322UR1
    • WEX025664D
    • Winstar
    • 128×64
    • 146×45
    • 137.65×35.89
    • 0.53×0.53
    • 0.50×0.50
    • COG
    • SSD1322UR1
